PA175FM

Plug and play amplifier modules.

- Ready and easy to use

- Supply voltage 48Vdc

- RF outpout power 175Watts (200W max)

- 8W max RF inpout power

- Integrated low pass filter

- SMA inpout connector

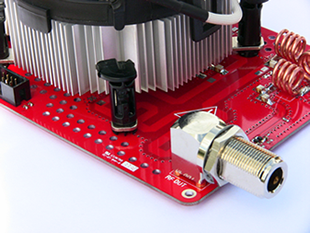

- N type outpout connector

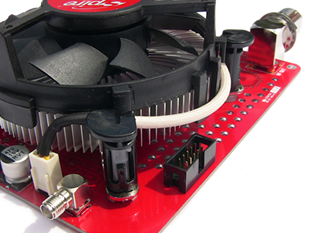

- Active integrated heatsink

- 10pts connector for digital power and SWR mesurement

- 12Vdc 1A outpout accesory sypply probe

- Dimension: 145mm X 115mm








" This outstanding amplifier module is a well design by dedicated technology. Just plug the power sypply, the inpout and outpout connector and you are ready.

It also provide 12Vdc 1A outpout supply for an potential FM exiter.

The amplifier module is aviable with an LCD interface to show and mesure the outpout power and SWR! "






Technical specification:


Supply voltage: 30 to 50Vdc

Supply current: 6A max (do not pass over this specification)

Maximum RF outpout power: 200W

Rated outpout power: 175W

Max inpout power: 8W

RF outpout/inpout impedance: 50 Ohm
